High-Precision 4-Axis CNC Rotary Table for Industrial Machining

四五轴CNC转台

突破传统三轴加工的极限。我们的转台为您的设备注入“旋转基因”，将受限的单面加工进化为无缝的多轴精密制造。专为消除重复装夹而生，将数小时的调机缩短至几分钟，瞬间实现产能翻倍。凭借微米级重复定位精度与卓越的刚性，我们助力您在最大化设备输出潜力的同时，大幅削减生产成本。

One Setup, Total Control. Double the Efficiency, Infinite Output👍

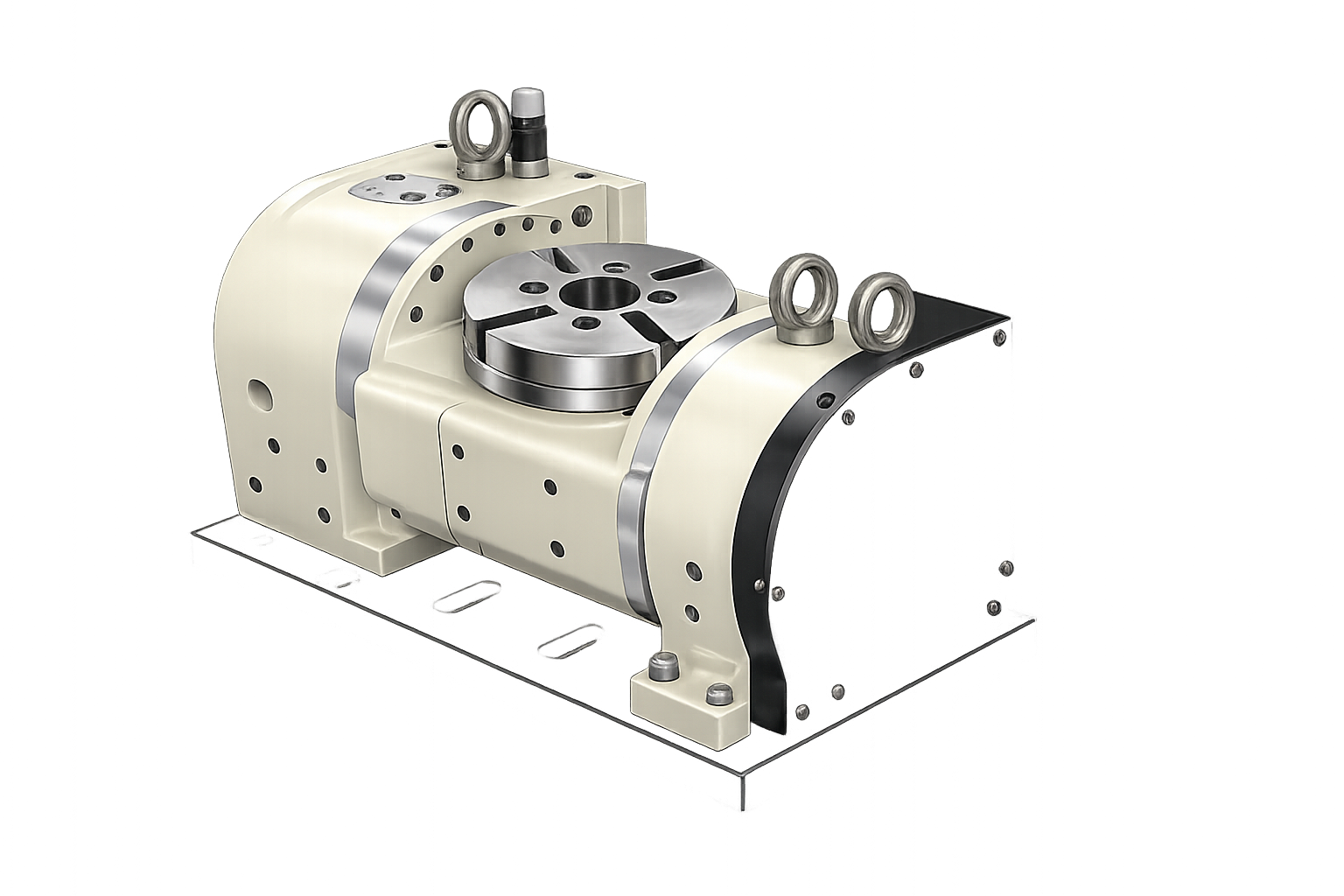

Features XY-GLOBAL 4th Axis Rotary Table XY-GLOBAL 5th Axis Rotary Table
Rotating Axis Single-axis rotation
(Typically A or B axis) 		Dual-axis linkage
(Typically A+C or B+C combinations)
Machining Dimension 3+1 Axis: Multi-angle side positioning and cylindrical interpolation. Simultaneous 5-Axis: Supports complex 3D spatial trajectory contouring.
Setup Efficiency Reduces re-clamping; ensures four-side symmetry and minimizes manual error. Ultimate Single Setup: Eliminates secondary alignment and cumulative errors for complex parts.
Repeatability Industrial-grade micron precision. Ultra-precision grade; ensures consistency across complex spatial paths.
Technical Barrier Intuitive & user-friendly; compatible with standard CNC index programming. Requires 5-axis CAM software and professional post-processing expertise.
Accessibility Limited by certain machining blind spots. Minimized interference; optimal tool approach angles.
Applications Worm gears, cams, hydraulic valve blocks, multi-sided housings. Impellers, propellers, medical implants, high-precision molds.
Investment ROI Cost-effective, high-ROI solution for machine tool upgrades. Higher initial investment with premium technical and margin returns.
4-Axis CNC Rotary Table Machining Cylindrical Metal Workpiece

典型应用

{"type":"root","children":[{"type":"heading","level":4,"children":[{"type":"text","value":"第四轴旋转工作台的应用：","bold":true}]},{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"齿轮切割：","bold":true},{"type":"text","value":" 精确加工齿轮和花键。"}]},{"type":"list-item","children":[{"type":"text","value":"圆柱雕刻：","bold":true},{"type":"text","value":" 在圆柱形工件上雕刻复杂设计。"}]},{"type":"list-item","children":[{"type":"text","value":"多面钻孔和开槽：","bold":true},{"type":"text","value":" 在零件的多个面上进行单次设置加工。"}]},{"type":"list-item","children":[{"type":"text","value":"精密定位：","bold":true},{"type":"text","value":" 需要高度准确的角度旋转的操作。"}]},{"type":"list-item","children":[{"type":"text","value":"涡轮叶片和螺旋齿轮：","bold":true},{"type":"text","value":" 复杂螺旋和旋转组件的制造。"}]}]},{"type":"heading","level":4,"children":[{"type":"text","value":"第五轴旋转工作台的应用：","bold":true}]},{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"航空航天组件：","bold":true},{"type":"text","value":" 复杂的涡轮叶片和发动机部件。"}]},{"type":"list-item","children":[{"type":"text","value":"汽车工业：","bold":true},{"type":"text","value":" 高精度模具和发动机缸体。"}]},{"type":"list-item","children":[{"type":"text","value":"医疗设备：","bold":true},{"type":"text","value":" 复杂的植入物和假肢。"}]},{"type":"list-item","children":[{"type":"text","value":"复杂模具制造：","bold":true},{"type":"text","value":" 深腔模具的高表面质量精加工。"}]},{"type":"list-item","children":[{"type":"text","value":"切削工具和高端机械：","bold":true},{"type":"text","value":" 专用铣刀和精密机械部件的生产。"}]}]}]}

为什么选择XY-GLOBAL的四五轴转台

  • 换装速度提升 80%： 在单次装夹中完成多面加工。消除人工对准，将机床闲置时间转化为高速生产。
  • 0.001° 精度与高扭矩： 采用热处理合金钢结合精密驱动系统。我们提供角秒级重复定位精度，并为重切削提供稳如磐石的稳定性。
  • 先进迷宫式密封： 具备正压空气吹扫和多层密封的卓越防护。有效阻隔冷却液与切屑，延长使用寿命。
  • 蔡司认证品质： 每一台单元均经过 Zeiss CMM（三坐标） 检测并符合 ISO 9001 认证。随附详细的精度报告，确保“即插即用”的巅峰性能。
  • 15 年以上专业积淀： 与 Fanuc（发那科）、Siemens（西门子）及 Heidenhain（海德汉） 系统无缝集成。享受 24/7 全天候技术支持与经受过行业实战检验的专业技能。
