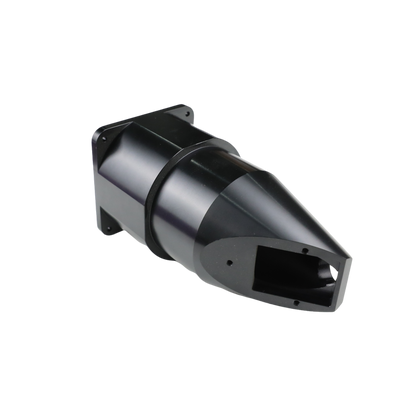

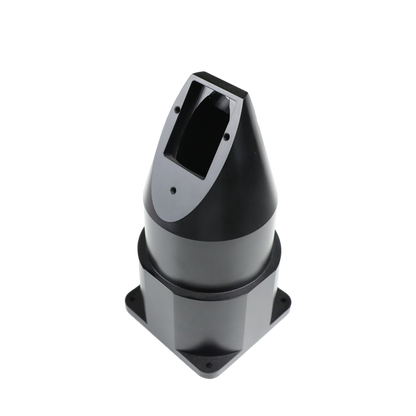

Optical Lens Barrel: A Key Component In Precision Optical Systems
We specialize in high-precision CNC machining and die casting, supporting tolerances down to ±0.01 mm.
Our ISO 9001 and ISO 13485 certified facilities provide in-house inspection, engineering support, and DFM review to ensure consistent quality.
We support fast prototyping to low- and mid-volume production, with strict confidentiality for all customer designs and data.
-
Contact Us
Typical Tolerances
Actual tolerances are defined based on drawings
-
General tolerance: ±0.02 mm
-
Critical optical features: ±0.01 mm or tighter
-
Concentricity / perpendicularity: ≤0.02 mm
-
Thread tolerance: per drawing or standard specification
Our optical lens barrels are precision-machined mechanical components designed for accurate lens positioning and stable optical alignment.
They are widely used in imaging, vision, laser, and optical sensing systems where dimensional accuracy and surface quality are critical.
We support fully customized optical lens barrel manufacturing based on customer drawings and application requirements.
Typical Parameters
| Item | Specification |
|---|---|
| Process | CNC Machining |
| Application | Optical systems, imaging, vision |
| Customization | Fully customized |
| Production Volume | Prototype to mass production |
| Drawing Required | Yes |
Custom Optical Lens Barrel Services
We manufacture optical lens barrels strictly according to customer drawings, including custom dimensions, internal structures, mounting features, and surface requirements.
📩 If you are interested, please send us your drawings or design files.
Our engineering team will review your project and provide a suitable manufacturing solution.
