TOOL HOLDER SERIES
High Precision CNC spindle tool holder ISO10
OTHER configuration:
Features:
Made of Japanese Daido SCM415 carburised steel with a core tensile strength of ≥950N/mm
Tool shank hardness of HRC54-56
Taper tolerance in accordance with AT3 grade, with a standard machine spindle fit surface of more than 90%
True roundness of internal and external taper ≤ 0.001mm, roughness ≤ Ra0.4
With cartridge and tool installed, tool runout is tested at ≤0.005mm when extended 5 times
Dynamic balance 100% inspection, meet 30000RPM, dynamic balance for G2.5
Product Description

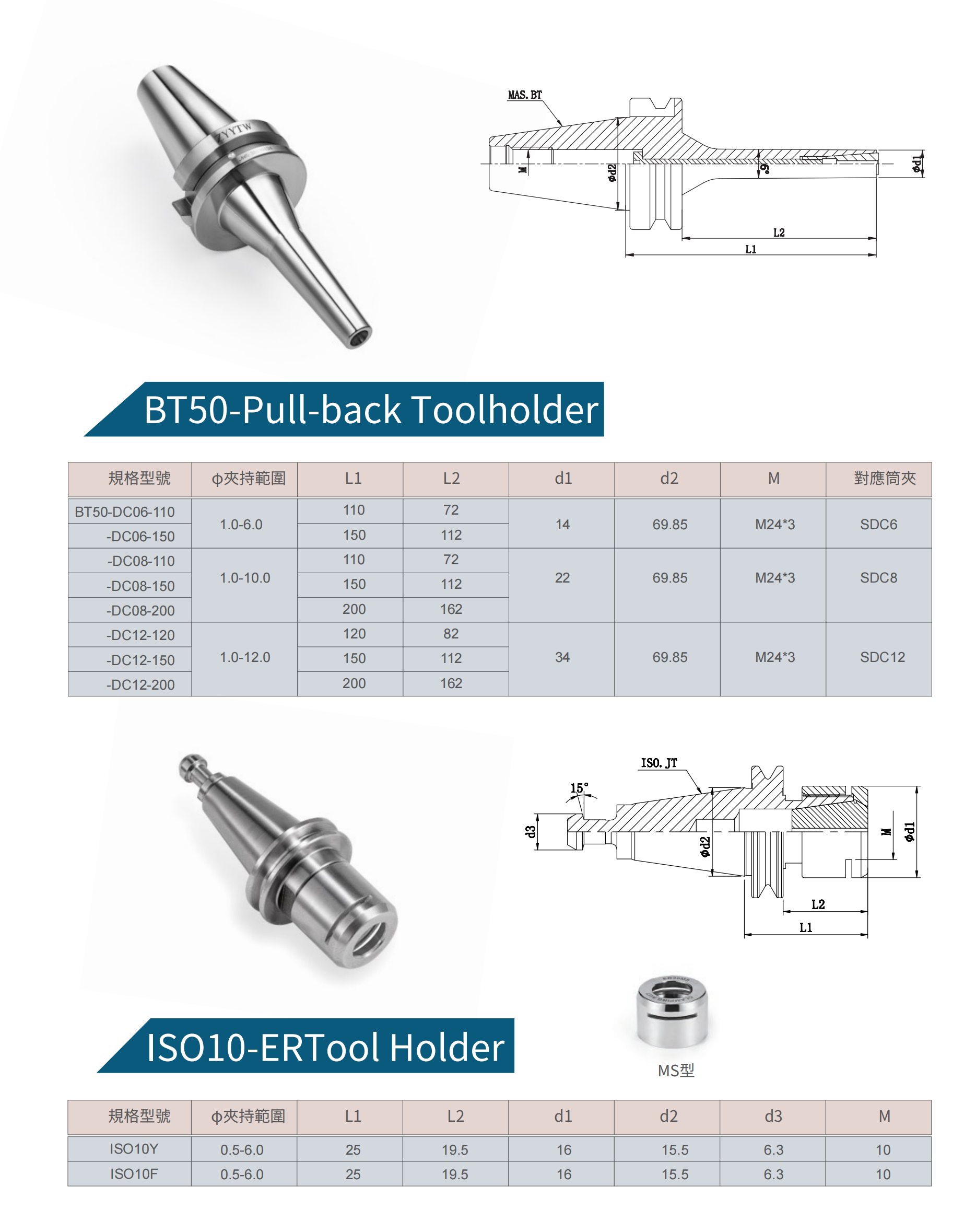

product size chart or static pressure:
Product Specfications
Essential details
Model Number:
ISO10
Products name:
High Precision CNC spindle tool holder ISO10
Hardness:
HRC56-60
Accuracy:
<0.005mm
Dynamic Balance:
G2.5/20000-30000rpm available
Material:
20CrMnTi
Essential details
| Model Number: | ISO10 | Products name: | High Precision CNC spindle tool holder ISO10 |
| Hardness: | HRC56-60 | Accuracy: | <0.005mm |
| Dynamic Balance: | G2.5/20000-30000rpm available | Material: | 20CrMnTi |
