TOOL HOLDER SERIES
BT30 ER11 Collet Chuck Tool Holder For Cnc milling lathe machine
OTHER configuration:
Features:
Made of Japanese Daido SCM415 carburised steel with a core tensile strength of ≥950N/mm
Tool shank hardness of HRC54-56
Taper tolerance in accordance with AT3 grade, with a standard machine spindle fit surface of more than 90%
True roundness of internal and external taper ≤ 0.001mm, roughness ≤ Ra0.4
With cartridge and tool installed, tool runout is tested at ≤0.005mm when extended 5 times
Dynamic balance 100% inspection, meet 30000RPM, dynamic balance for G2.5
| Quantity (pieces) | 1 – 30 | 31 – 500 | 501 – 1000 | > 1000 |
| Lead time (days) | 7 | 15 | 25 |
To be negotiated |
Customization:
Customized logo (Min. order 100 pieces)
Graphic customization (Min. order 100 pieces)
Customized packaging (Min. order 100 pieces)
Product Description

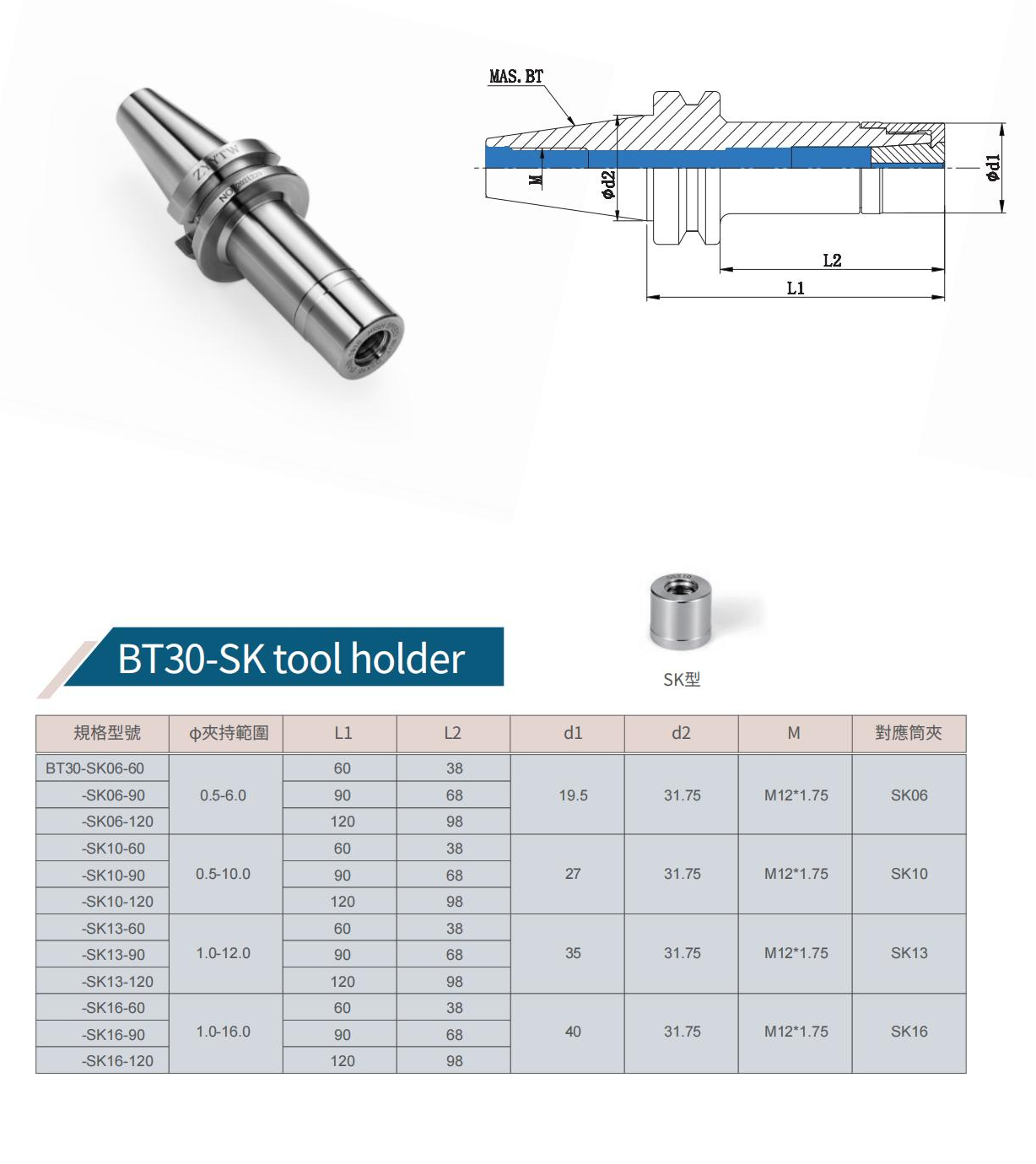

product size chart or static pressure:
Product Specfications
Essential details
Type:
BT30
Applicaion:
CNC Lathe Precision Milling
Application:
MILLING CUTTER
Core Components:
Tool Holder
Hardness:
HRC56-58
Material:
20CrMnTi
Delivery:
3-7 Days
Precision:
0.002mm
Essential details
| Type: | BT30 | Applicaion: | CNC Lathe Precision Milling |
| Application: | MILLING CUTTER | Core Components: |
Tool Holder |
| Hardness: | HRC56-58 | Material: | 20CrMnTi |
| Delivery: | 3-7 Days | Precision: | 0.002mm |
