A black anodise finish is one of the most common surface treatments for CNC machined aluminum parts. It gives aluminum components a clean black appearance while improving surface protection, corrosion resistance, wear performance, and part consistency.
For precision-machined components, black anodising is not only about color. It also affects dimensional tolerance, assembly fit, surface texture, masking areas, and long-term product performance. This is especially important for parts used in optical equipment, medical devices, robotics, electronics, aerospace components, and industrial automation systems.
At XY-GLOBAL, black anodise finish is often used for custom CNC machined aluminum parts that require both functional performance and a professional appearance.
What Is A Black Anodise Finish?
A black anodise finish is created through an electrochemical process that forms a controlled aluminum oxide layer on the surface of an aluminum part. Unlike paint or powder coating, anodising does not simply sit on top of the material. The oxide layer becomes part of the aluminum surface, which helps improve durability and corrosion resistance.
After anodising, the aluminum part can be dyed black and sealed to improve color retention and surface protection. This creates a smooth, uniform black surface that is widely used for both visible and functional components.
In different markets, the same finish may also be called black anodized finish, black anodising, black anodized aluminum, or black anodised aluminium. The spelling may vary, but the process and design considerations are generally similar.
Why Black Anodising Is Used For Aluminum CNC Parts
Aluminum is lightweight, machinable, and suitable for many precision applications. However, raw aluminum can oxidize, scratch, or show machining marks if it is left untreated. A black anodise finish helps improve both the appearance and functional performance of CNC machined aluminum parts.
For many custom aluminum components, black anodising is selected because it offers several practical advantages:
- Clean black appearance for visible housings, covers, brackets, and panels
- Improved corrosion resistance compared with untreated aluminum
- Better surface durability for handling, assembly, and long-term use
- Lower light reflection, which is useful for optical, imaging, and sensor-related parts
- Thin and integrated surface layer, making it more suitable than paint for many tight-tolerance CNC parts
- Professional product finish for medical devices, robotics, electronics, aerospace, and industrial equipment
Compared with painting or powder coating, black anodising usually provides a thinner and more controlled surface layer. This makes it more suitable for parts with fine features, threaded holes, mounting surfaces, slots, and assembly interfaces.
Type II And Type III Black Anodising
Not every black anodise finish has the same performance. The final result depends on the anodising type, coating thickness, alloy, surface preparation, dyeing process, and sealing method.
| Anodising Type | Typical Use | Main Advantage |
|---|---|---|
| Type II Black Anodising | Decorative and general protective finish | Good appearance, corrosion resistance, and color uniformity |
| Type III Hard Anodising | High-wear or functional components | Better hardness, wear resistance, and thicker coating |
Type II black anodising is commonly used for aluminum parts that require a clean black appearance and standard corrosion protection. It is suitable for many visible housings, brackets, covers, panels, and precision CNC components.
Type III hard anodising is used when the part needs higher surface hardness, better wear resistance, or stronger functional protection. However, the finish may appear darker grey, matte black, or less cosmetically uniform depending on alloy and coating thickness. For appearance-critical parts, it is important to confirm the expected visual standard before production.
How Black Anodise Finish Affects Dimensional Tolerance
For precision CNC machining, one of the most important questions is whether black anodising will affect the final dimensions. The answer is yes, but the impact can be controlled if it is considered early.
Anodising creates a surface layer that changes the final part size. Part of the coating builds outward from the original surface, while part of it grows into the aluminum substrate. For tight-tolerance features, this means the machining size may need to be adjusted before anodising.
Critical areas such as bearing seats, sliding surfaces, threaded holes, press-fit areas, sealing surfaces, and datum faces should be reviewed before production. In some cases, these areas may need masking, post-machining, or special tolerance compensation.
Surface Appearance And Color Consistency
A black anodise finish can create a clean, premium surface, but color consistency depends on several factors. Aluminum alloy, machining marks, surface roughness, bead blasting, polishing, anodising thickness, dye absorption, and sealing quality can all affect the final appearance.

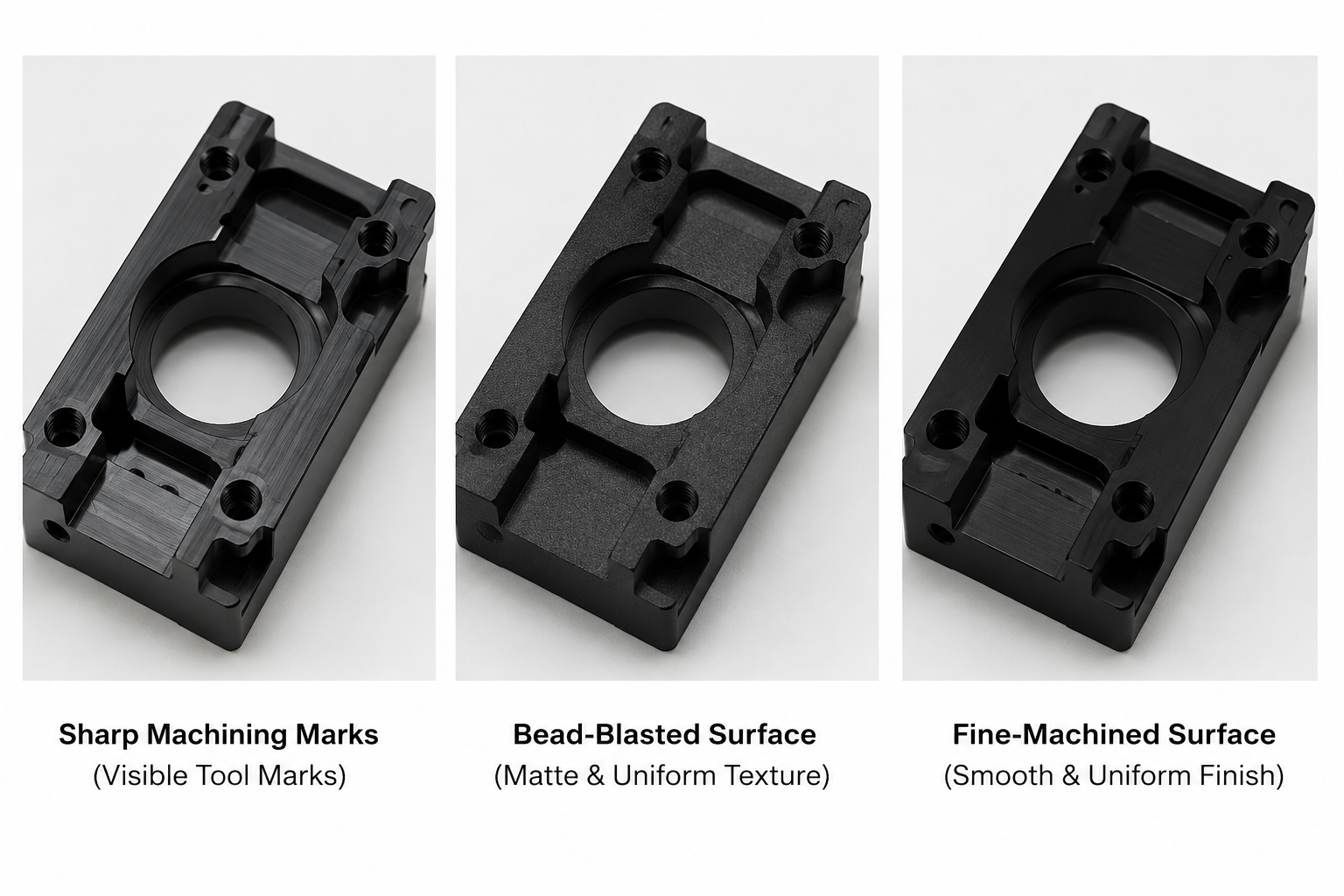

For example, the same black anodising process may look slightly different on different aluminum alloys. A part with sharp machining marks may also show a different visual effect compared with a bead-blasted or fine-machined surface.
If cosmetic appearance is important, customers should define the expected finish clearly. A sample part, master sample, or acceptable color range can help reduce misunderstanding. For batch production, it is also better to process parts under controlled and consistent conditions to reduce color variation.
Design Considerations Before Black Anodising
Black anodising should be considered during the design and machining stage, not only after the parts are finished. For precision aluminum components, the finish can affect tolerance, appearance, assembly, and inspection results.
Before confirming a black anodise finish, engineers should review several key areas:
| Design Area | Why It Matters |
|---|---|
| Tight tolerance surfaces | Anodising changes the final part size and may require machining compensation |
| Threaded holes | Small threads may become tighter after anodising |
| Press-fit or bearing areas | These areas may need masking or post-machining |
| Electrical contact surfaces | Anodised surfaces are generally non-conductive |
| Optical or visible surfaces | Surface preparation affects final black color and texture |
| Sharp edges | Very sharp corners may lead to uneven coating or weaker edge protection |
| Masking areas | Areas that should not be anodised must be clearly marked on the drawing |
For parts with strict assembly requirements, it is important to confirm which surfaces can be anodised and which surfaces should remain untreated. If the part requires laser marking, grounding areas, conductive zones, or secondary finishing, these requirements should be stated before production.
Industries That Use Black Anodised Aluminum Parts
Black anodised aluminum parts are widely used across high-value industries because they offer a balance of appearance, weight, and performance.
In optical and imaging equipment, black anodising helps reduce reflection and gives housings, lens mounts, camera parts, and sensor brackets a stable professional finish. For medical devices, it can be used on aluminum structures, instrument parts, and non-implant mechanical components where appearance and corrosion resistance are important.
Robotics and automation systems often use black anodised aluminum for brackets, frames, covers, drive system parts, and compact mechanical assemblies. Electronics and communication products use it for enclosures, heat sinks, front panels, and mounting components.
In aerospace and industrial applications, black anodising is selected when lightweight aluminum parts need improved surface protection while maintaining good dimensional control.
Black Anodise Finish Vs Other Surface Treatments
Black anodising is different from painting, powder coating, black oxide, and electroplating. Each finish has its own purpose.
Paint and powder coating can provide more color options and thicker coverage, but they may not be ideal for very tight-tolerance machined parts. Black oxide is mainly used for steel, not aluminum. Electroplating may be used for specific metals and functions, but it is not the same as anodising.
For aluminum CNC parts, black anodising is often preferred when the customer needs a thin, durable, corrosion-resistant, and professional-looking finish without hiding the machined geometry.
Quality Control For Black Anodised CNC Parts
Quality control for black anodised aluminum parts should include both dimensional inspection and surface inspection. A part may look acceptable visually but still have issues with threads, assembly fit, coating thickness, or masking accuracy.
For precision CNC projects, the inspection process usually focuses on the following points:
- Final dimensions after anodising
- Critical tolerance areas
- Thread condition and gauge inspection
- Color consistency across the batch
- Surface scratches, stains, spots, or rack marks
- Masking accuracy on untreated areas
- Surface roughness when required
- Sample assembly or functional fit check
For appearance-critical components, the acceptable visual standard should be confirmed before production. Minor color variation, rack marks, or hidden-area marks may be acceptable for some industrial parts, but not for premium medical, optical, camera, or consumer-facing components.
Working With XY-GLOBAL For Black Anodised Aluminum Parts
XY-GLOBAL provides custom CNC machining and surface finishing support for aluminum components, including black anodise finish for prototype and production projects. Our engineering team can review drawings, 3D files, tolerance requirements, masking areas, and appearance standards before production.
For projects involving tight tolerances, optical alignment, medical device structures, robotics components, or high-end aluminum housings, early DFM review helps reduce risk and improve final part consistency.
If your project requires black anodise finish for CNC machined aluminum parts, providing the drawing, 3D model, material grade, surface finish requirement, tolerance standard, and cosmetic expectations will help us evaluate the process more accurately.
FAQ
Can black anodise finish be applied to all aluminum alloys?
Most common CNC aluminum alloys can be anodised, but the final color and surface appearance may vary by alloy. If the part has strict cosmetic requirements, it is better to confirm the material and finish standard before production.
Will black anodising affect threaded holes?
Yes, anodising can slightly change thread dimensions, especially on small or tight threads. Threads may need masking, tapping after finishing, or tolerance compensation depending on the design requirement.
Can only selected areas of a part be black anodised?
Selective finishing may be possible through masking, but it depends on the part geometry and required masking accuracy. Critical conductive areas, sealing surfaces, and precision fitting areas should be marked clearly on the drawing.
What information should be provided before quoting?
It is helpful to provide 2D drawings, 3D files, material grade, required anodising type, coating thickness if specified, cosmetic standard, masking requirements, and inspection requirements.
Is black anodise finish suitable for prototype parts?
Yes. Black anodising is suitable for prototypes, small batches, and production parts. For prototypes, it can help verify both appearance and functional performance before moving to larger production.
