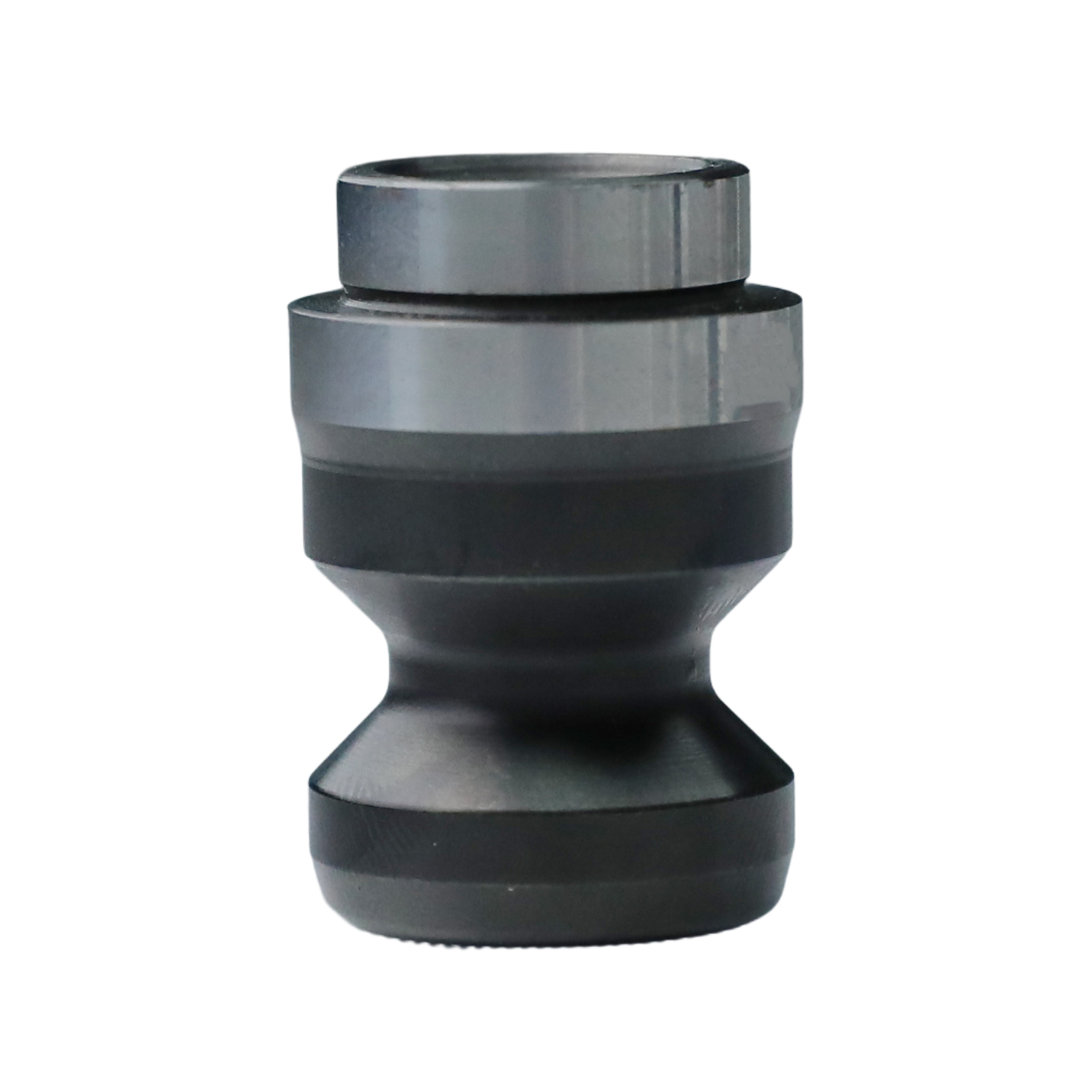

Zero-Point Clamping Pull Stud – High-Force Locking Stud for Quick-Change Systems
This clamping pull stud is engineered for zero-point clamping systems to provide strong, repeatable holding force during part or fixture changeovers. Ideal for high-speed CNC applications requiring rigidity, automation compatibility, and fast setup transitions.
Product Function:
This pull stud is designed to engage with a zero-point clamping base to create axial clamping force. Once inserted and activated by the drawbar or pneumatic mechanism, it locks the fixture, plate, or workpiece firmly in position — ensuring high stiffness and no micro-movement during machining.
Key Specifications:
-
Function: Clamping / holding
-
Material: Alloy tool steel or hardened stainless
-
Surface Finish: Black oxide or nitrided
-
Clamping Force: Up to 35 kN (depending on system)
-
Repeatability: ≤ ±0.005 mm
-
Application: Quick-change baseplates, automation setups, robotic cells
-
Compatible with: LANG, Erowa, AMF, or customized platforms
Features & Benefits
-
✔️ High axial clamping force for secure fixture locking
-
✔️ Hardened and surface-treated for long service life
-
✔️ Smooth engagement with reduced wear
-
✔️ Designed for quick tool or fixture exchange
-
✔️ Customizable dimensions and interfaces available
Application Scenarios
-
Robotic loading/unloading stations
-
High-speed CNC vertical & 5-axis centers
-
Modular fixture base setups
-
Multi-station machining cells
-
Pallet changers in smart factories
Manufacturing & Support
Produced at XY-GLOBAL’s Malaysia precision facility with:
-
5-axis CNC turning and grinding
-
CMM inspection and full material traceability
-
OEM/ODM support for global integrators
-
Small batch or high-volume available
📩 Need Help Matching a System?
Send us your clamping base model or drawing – we’ll help you select or custom-machine the right clamping pull stud for your production line.
