Zero-Point Clamping System Locating Pull Stud – Precision Alignment Pin

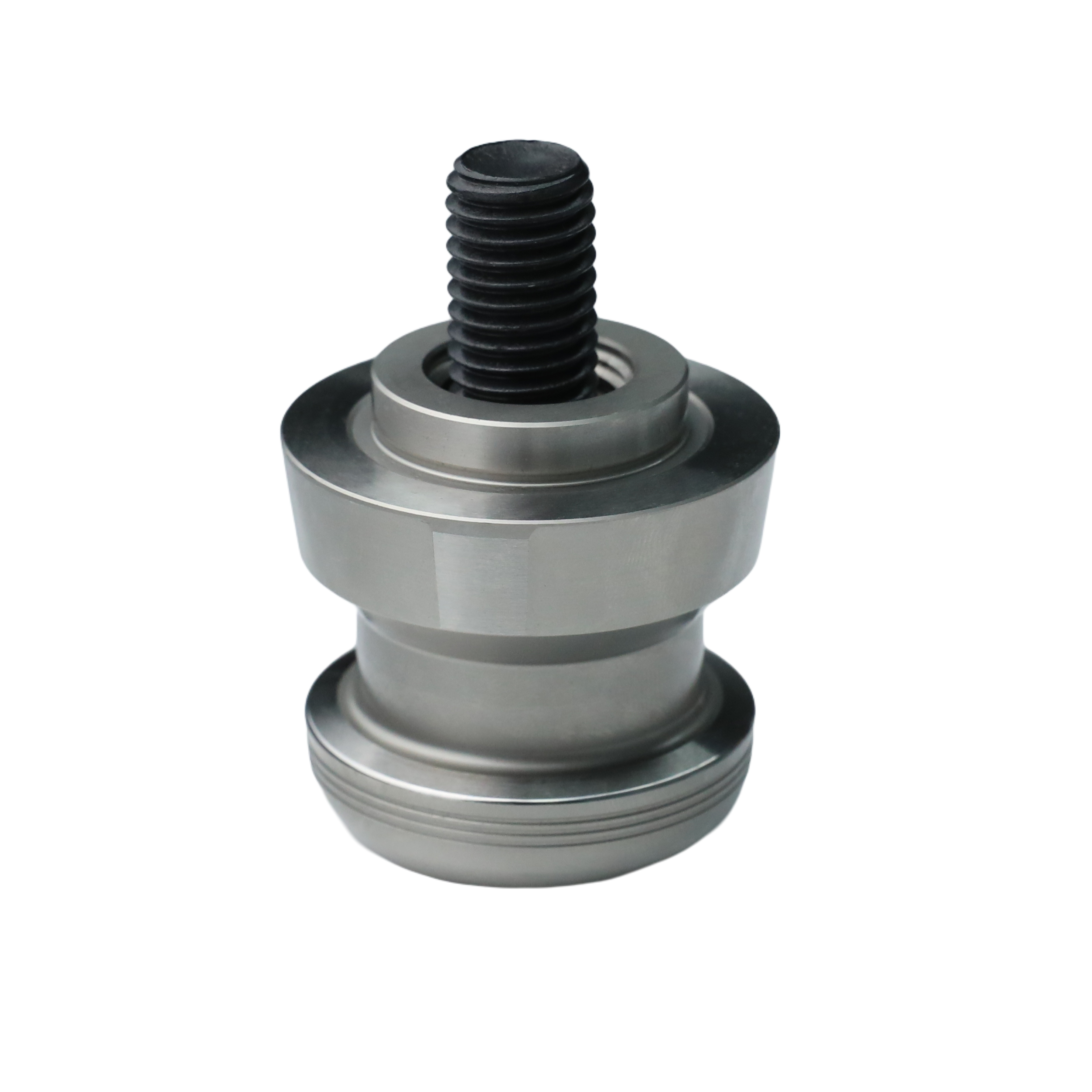

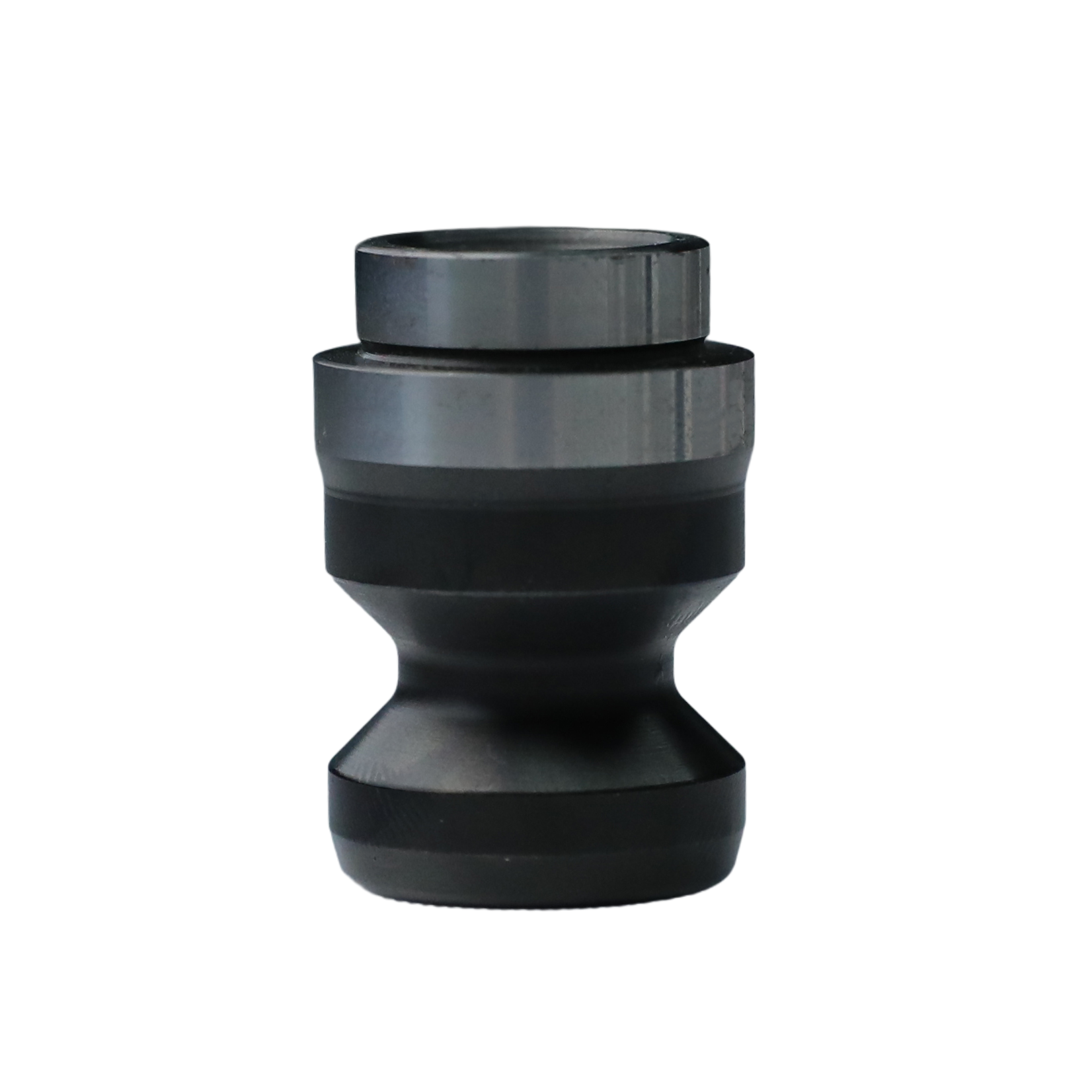

Zero-Point Locating Pull Stud – High-Precision Positioning Pin

Product Features:

  • Material: Hardened alloy steel / optional stainless steel

  • Surface finish: Black oxide / Nickel plating

  • Repeatability: ±0.005 mm

  • Compatible with: Erowa / Lang / AMF zero-point systems

  • Load capacity: ≥25kN (standard size)

  • Application: Fixture baseplates, CNC 5-axis clamping, automated platforms

Custom Options:

  • Shoulder height / flange diameter

  • Threaded or threadless types

  • Laser-etched ID or logo

  • Fit to OEM drawing or interface

Precision locating pull stud designed for zero-point clamping systems. Ensures repeatable fixture positioning, accurate alignment, and stable clamping for CNC machining platforms and modular setups.

Used in:

  • CNC machining centers with quick-change baseplates

  • Robotic modular tooling fixtures

  • High-precision 5-axis machine setups

  • Aerospace / medical / automotive part positioning

XY-GLOBAL manufactures precision pull studs for modular clamping systems at our ISO-certified Malaysia facility. We serve automation integrators, fixture developers, and end-users seeking tight-tolerance, repeatable solutions for high-mix/low-volume manufacturing.
