Precision CNC Machining for the Medical Industry

CNC Machining as a Foundation for Modern Manufacturing

Computer Numerical Control (CNC) machining is a highly advanced manufacturing technology that uses computer-controlled machines to precisely cut, shape, and form parts. Guided by digital instructions generated from CAD/CAM software, CNC machines can consistently produce components with micron-level tolerances and exceptional repeatability. This makes it possible to manufacture both simple and highly complex geometries that would be extremely challenging or impossible to create with manual processes.

CNC machining works across a wide range of materials — from aluminum, stainless steel, and titanium to engineering plastics like POM, PEEK, and PTFE — enabling its adoption in virtually every industry. Processes such as milling, turning, drilling, grinding, routing, and polishing can all be performed under computer control, ensuring accuracy, consistency, and efficiency.

Its advantages include:

• Cost-efficiency: Reduced waste, minimized defects, and shortened setup times.

• Versatility: Suitable for high-volume production, small-batch manufacturing, and one-off custom projects.

• Advanced capabilities: Multi-axis machining, automated tool changers, and real-time process monitoring.

These strengths have made CNC machining a cornerstone in sectors such as automotive, aerospace, electronics, optics, and, critically, the medical device industry.

CNC Machining in the Advancement of the Medical Industry

The medical industry demands unmatched precision, reliability, and compliance with strict regulatory standards. CNC machining has become a key enabler in producing life-saving medical components — from implants to surgical tools and diagnostic equipment — ensuring safety, functionality, and biocompatibility.

One of CNC machining’s greatest strengths in medical manufacturing is its ability to achieve micron-level accuracy with flawless surface finishes. This is vital for products that directly interact with the human body or that require perfect alignment, such as surgical instruments, orthopedic implants, and precision housings for medical imaging devices.

Equally important is material compatibility. CNC machining can process biocompatible metals like titanium and surgical-grade stainless steel, as well as medical-grade polymers such as PEEK. These materials withstand sterilization, resist corrosion, and maintain their mechanical integrity inside the body or under continuous use in clinical environments.

By combining speed, customization, and precision, CNC machining supports rapid prototyping, allowing medical device manufacturers to bring innovations to market faster and with greater confidence.

Surgical and Medical Instrument Manufacturing

Surgical and medical instruments must be exceptionally precise, durable, and sterile. Any deviation in dimension or surface quality can compromise their performance in life-critical procedures. CNC machining allows for the consistent production of complex geometries, sharp cutting edges, and ergonomic designs that meet rigorous clinical standards.

Materials commonly used for surgical instruments include:

• Surgical-grade stainless steel (316L) for strength and corrosion resistance.

• Titanium for lightweight durability and biocompatibility.

• High-performance plastics such as PEEK and PPSU for MRI compatibility and non-conductive properties.

Applications include orthopedic tools (bone drills, reamers), microsurgical instruments (forceps, micro-scissors), endoscopic tools, and dental instruments. Multi-axis CNC machining enables integrated ergonomic grips, internal channels, and reduced assembly points, which not only enhance performance but also simplify sterilization.

Rapid prototyping with CNC also helps surgeons and engineers refine designs faster, ensuring optimal balance, usability, and manufacturability before full-scale production.

CNC Machining for Orthopedic and Implantable Devices

Orthopedic and implantable devices must achieve a perfect fit within the human body and maintain functionality for years, sometimes decades. CNC machining enables the creation of implants with complex geometries, flawless finishes, and exact tolerances tailored to individual patients.

Key applications include:

• Joint replacements: Hip and knee prostheses.

• Spinal fixation systems: Rods, cages, and plates.

• Dental implants and abutments.

• Trauma fixation devices for fracture stabilization.

Common materials include titanium alloys (Ti-6Al-4V), cobalt-chrome alloys, and 316L stainless steel. Surface finishes are critical — from mirror-polished bearing surfaces for joint replacements to micro-textured surfaces for bone integration. CNC machining allows precise control over these surface properties, with optional post-treatments like anodizing or hydroxyapatite coating.

The rise of patient-specific implants — made possible through integration of imaging data and CAD/CAM workflows — demonstrates CNC machining’s role in personalized healthcare solutions.

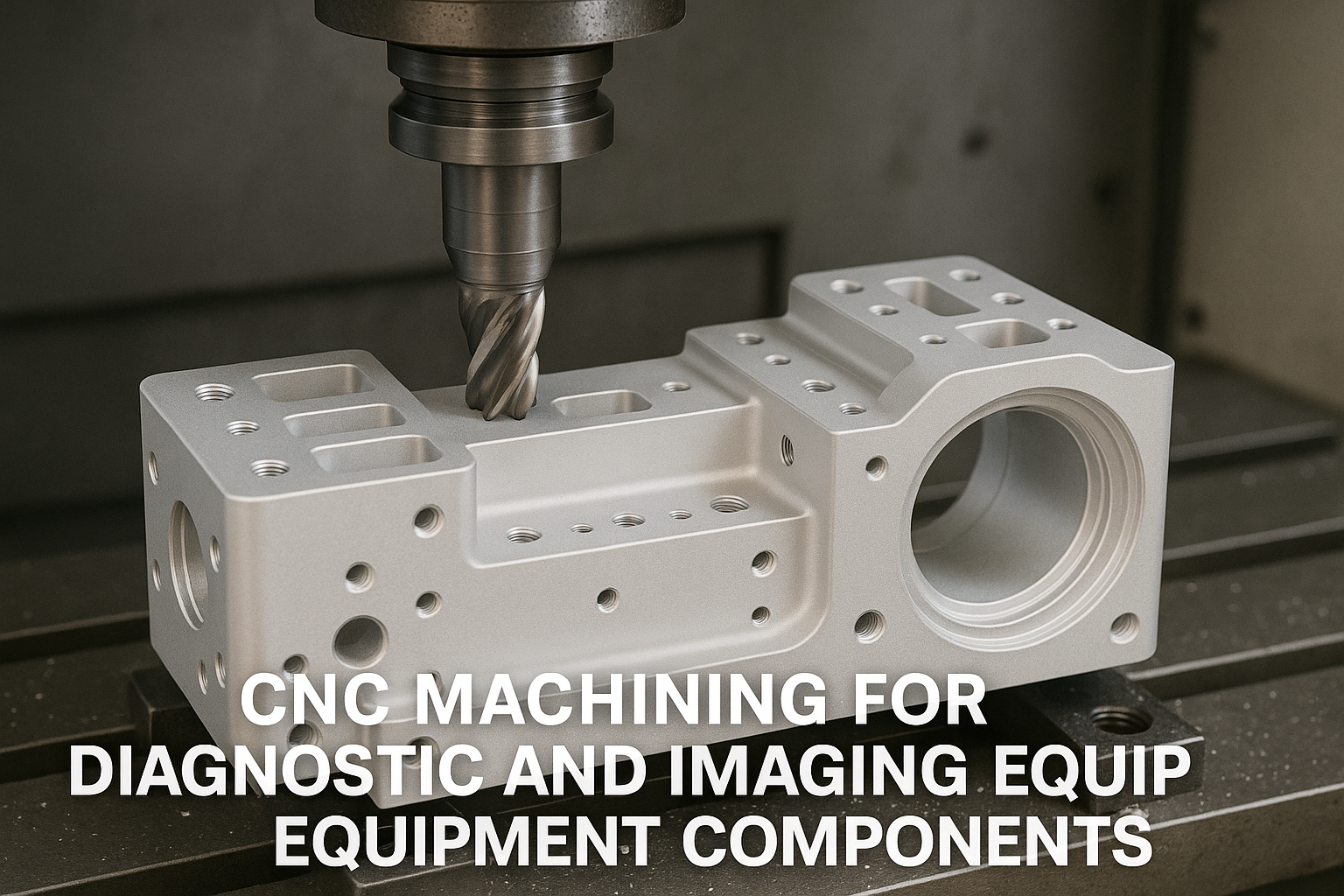

CNC Machining for Diagnostic and Imaging Equipment Components

Modern diagnostic and imaging devices rely on precision-engineered mechanical and optical components. CNC machining produces housings, frames, and miniature assemblies for systems such as MRI scanners, CT machines, ultrasound units, and surgical microscopes.

For optical diagnostic tools — including endoscopes and ophthalmic devices — CNC machining delivers single-micron tolerances to ensure perfect optical alignment. Components can be manufactured from non-magnetic materials for MRI compatibility and from corrosion-resistant alloys or plastics to endure frequent sterilization.

Applications include:

• Lens holders and optical mounts for imaging clarity.

• Precision alignment fixtures for sensor calibration.

• Ergonomic housings for portable diagnostic units.

CNC also accelerates R&D cycles by enabling rapid prototyping of equipment components, allowing engineers to validate designs and improve ergonomics before full production.

Lens Holders and Optical Mounts in Medical Device Applications

Among the most demanding optical components in diagnostic and imaging systems are lens holders and holder lens structures, which are essential for ensuring accurate positioning and stable alignment of optical elements. In medical applications such as endoscopes, ophthalmic devices, and miniature imaging units, even micron-level misalignment can degrade image quality or result in diagnostic errors.

CNC machining enables the production of precision lens holders from both metal and high-performance polymer materials, supporting ultra-tight tolerances and design flexibility. Features such as internal threads, mounting slots, or snap-fit geometries can be incorporated directly into the part during machining, reducing secondary assembly requirements and improving alignment reliability.

✅ A well-machined lens holder not only supports optical accuracy but also ensures long-term durability in high-sterilization clinical environments.

Common CNC-Machined Optical Components for Medical Systems

The table below summarizes typical precision CNC components for the medical industry, specifically in the field of optical diagnostics and imaging:

Each of these components requires not only dimensional precision but also optimized surface finish and stability under sterilization or heat cycling, which CNC machining is well-suited to deliver.

Why CNC is Preferred for Lens Holder Manufacturing

CNC machining offers several critical advantages in the production of holder lens assemblies and other miniature optical structures:

• Micro-scale dimensional accuracy critical for perfect optical axis alignment.

• Material flexibility to accommodate both metallic and polymer lens mounts.

• Design consistency in mass production with low part-to-part variation.

• Customizability for different lens sizes, curvatures, and attachment features.

This level of control makes CNC ideal for producing single-piece lens holders for endoscopy systems, multi-part lens stacks for ophthalmology, or modular designs for lab diagnostics.

Conclusion

From surgical instruments to orthopedic implants and diagnostic imaging equipment, CNC machining is a cornerstone of medical manufacturing. Its unmatched precision, versatility, and ability to work with advanced biocompatible materials make it indispensable for producing safe, reliable, and innovative medical devices.

As healthcare technology moves toward miniaturization, personalization, and enhanced functionality, CNC machining will continue to evolve as both a production tool and a driver of innovation — enabling medical breakthroughs that improve patient outcomes worldwide.
